SKU: TP-Link-Router Archer AX55

AX3000 WiFi 6 Router

$229.00

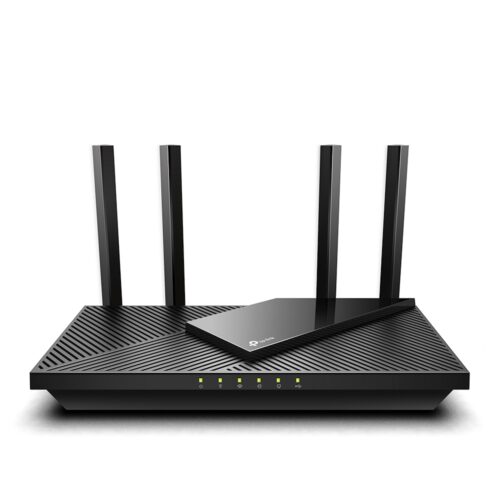

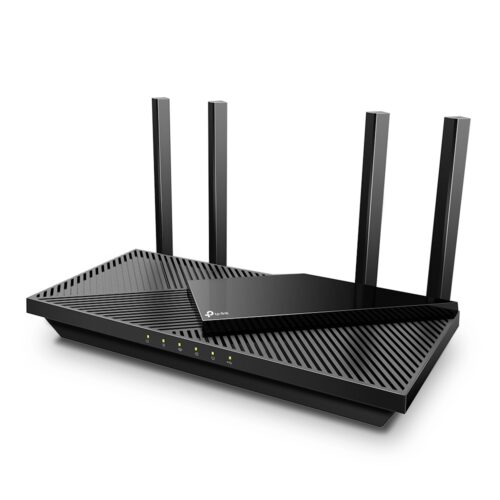

Archer AX55 AX3000 Dual Band Gigabit Wi-Fi 6 Router

In stock

WIRELESS
Standards and Protocols	Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds	AX3000 5 GHz: 2402 Mbps (802.11ax, HE160) 2.4 GHz: 574 Mbps (802.11ax)
WiFi Range	3 Bedroom Houses 4× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range High-Power FEM Improves transmission power to strengthen signal coverage
WiFi Capacity	High Dual-Band Allocate devices to different bands for optimal performance OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients Airtime Fairness Improves network efficiency by limiting excessive occupation DFS Access an extra band to reduce congestion 4 Streams Connect your devices to more bandwidth
Working Modes	Router Mode Access Point Mode

SECURITY
Network Security	HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner
Guest Network	1× 5 GHz Guest Network 1× 2.4 GHz Guest Network
VPN Server	OpenVPN PPTP
VPN Client	• Open VPN Client • PPTP VPN Client • L2TP VPN Client
WiFi Encryption	WPA/WPA2-Personal, WPA2/WPA3-Personal, WPA/WPA2-Enterprise

HARDWARE
Processor	Dual-Core CPU

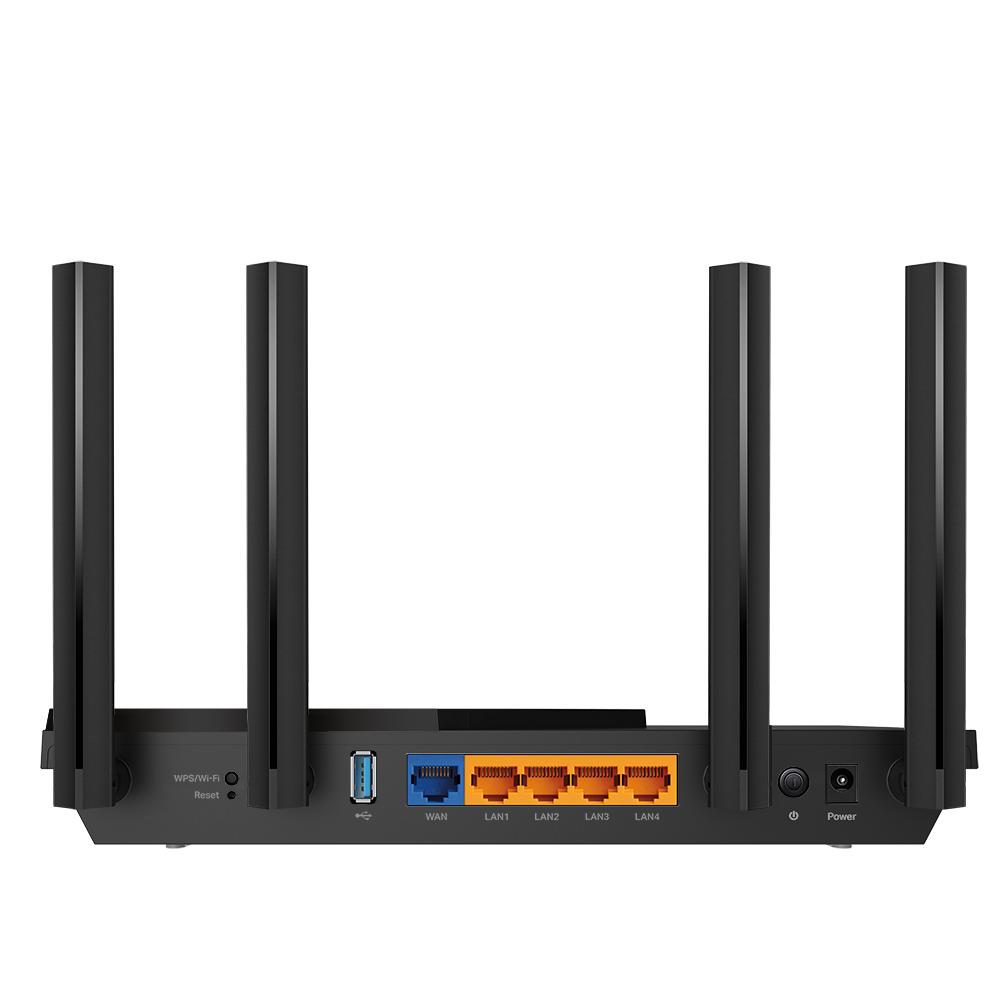

Ethernet Ports	1× Gigabit WAN Port 4× Gigabit LAN Ports
USB Support	1× USB 3.0 Port
Buttons	Wi-Fi/WPS Button Power On/Off Button Reset Button
Power	12 V ⎓ 2 A

SOFTWARE
Protocols	IPv4 IPv6
Service Kits	HomeShield
OneMesh™	OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
EasyMesh	Mesh networking creates smooth, fast, stable roaming. Archer AX55 can flexibly build an EasyMesh network with EasyMesh-Compatible devices, which eliminates Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Seamless Wi-Fi connections with one network name, one-click setting and flexible scalability.
Parental Controls	HomeShield Parental Controls Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports
WAN Types	Dynamic IP Static IP PPPoE PPTP L2TP
Quality of Service	QoS by Device
Cloud Service	Auto Firmware Upgrade OTA Firmware Upgrade TP-Link ID DDNS
NAT Forwarding	Virtual Servers Port Forwarding Port Triggering DMZ UPnP
IPTV	IGMP Proxy IGMP Snooping Bridge Tag VLAN
DHCP	Address Reservation DHCP Client List Server
DDNS	TP-Link NO-IP DynDNS
Management Features	Tether App Webpage

OTHER
System Requirements	Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access)
Certifications	FCC, CE, RoHS
Environment	Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing

OTHER

System Requirements

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

Certifications

FCC, CE, RoHS

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing

TEST DATA
WiFi Transmission Power	CE: <20dBm(2.4GHz) <23dBm(5.15GHz~5.35GHz) <30dBm(5.47GHz~5.725GHz) FCC: <30dBm(2.4GHz & 5.15GHz~5.825GHz)
WiFi Reception Sensitivity	Transmit Power: CE: <20dBm (2.4GHz); <23dBm (5.15GHz~5.35GHz); <30dBm (5.47GHz~5.725GHz) FCC: <30dBm (2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz) Reception Sensitivity: 2.4GHz: 11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS8:-74dB 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-70dB 11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-66dBm 11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-63dBm 5GHz: 11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS8:-75dBm 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-70dBm 11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS9:-67dBm 11ac VHT160_MCS0:-88dBm, 11ac VHT160_MCS9:-63dBm 11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-66dBm 11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-63dBm 11ax HE80_MCS0:-91dBm, 11ax HE80_MCS11:-61dBm 11ax HE160_MCS0:-87dBm, 11ax HE160_MCS11:-58dBm

TEST DATA

WiFi Transmission Power

CE:
<20dBm(2.4GHz)
<23dBm(5.15GHz~5.35GHz)
<30dBm(5.47GHz~5.725GHz)
FCC:
<30dBm(2.4GHz & 5.15GHz~5.825GHz)

WiFi Reception Sensitivity

Transmit Power: CE: <20dBm (2.4GHz); <23dBm (5.15GHz~5.35GHz); <30dBm (5.47GHz~5.725GHz) FCC: <30dBm (2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz)

Reception Sensitivity: 2.4GHz: 11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS8:-74dB 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-70dB 11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-66dBm 11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-63dBm 5GHz: 11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS8:-75dBm 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-70dBm 11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS9:-67dBm 11ac VHT160_MCS0:-88dBm, 11ac VHT160_MCS9:-63dBm 11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-66dBm 11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-63dBm 11ax HE80_MCS0:-91dBm, 11ax HE80_MCS11:-61dBm 11ax HE160_MCS0:-87dBm, 11ax HE160_MCS11:-58dBm

PHYSICAL
Dimensions (W×D×H)	10.2 × 5.3 × 1.5 in (261.1 × 134.5 × 41.0 mm)
Package Content	Wi-Fi Router Archer AX55 Power Adapter RJ45 Ethernet Cable Quick Installation Guide
